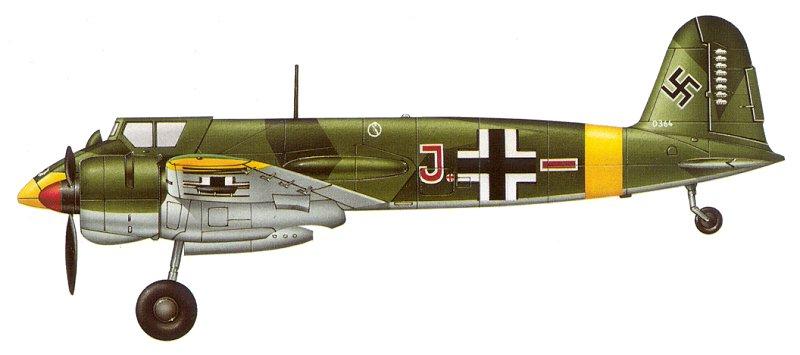

Single Seat Close Support & Ground Attack Henschel was one of four companies (the others being Focke-Wulf, Gotha and Hamburger Flugzeugbau) to which, in April 1937, the Technische Amt of the Reichsluftfahrtministerium (RLM) issued a specification for a twin-engine ground-attack aircraft. It was required to carry at least two 20 mm MG FP cannon and to have extensive armour plating protection for crew and engines. The two designs for which development contracts were awarded on 1 October 1937 were the Focke-Wulf Fw 189C and Henschel Hs 129. The latter was another Friedrich Nicolaus design with a light alloy stressed-skin fuselage of triangular section. It contained a small cockpit with a restricted view, necessitating the removal of some instruments to the inboard sides of the engine cowlings. The windscreen was made of 75 mm (2.95 in) armoured glass and the nose section was manufactured from armour plating. Nose armament comprised two 20 mm MG FF cannon and two 7.92 mm (0.31 in) MG 17 machine guns. The prototype flew in the spring of 1939, powered by two 465 hp (347 kW) Argus As 410A-1 engines, and two further prototypes were flown competitively against the modified Fw 189 development aircraft for the Fw 189C. Although the Henschel aircraft was considered to be underpowered and sluggish, and to have too small a cockpit, the company was awarded a contract for eight pre-production Hs 129A-0 aircraft, and these were issued initially to 5 (Schlacht)./LG 2 in 1940, but transferred to 4./SG 101 at Paris-Orly in 1941, with the exception of two which were converted at Schonefeld to accept Gnome-Rhone 14M 4/5 radial engines. It was with this powerplant that 10 Hs 129B-0 development aircraft were delivered from December 1941; improvements included a revised cockpit canopy and the introduction of electrically-actuated trim tabs, and armament comprised two 20 mm MG 151/20 cannon and two 7.92 mm (0.31 in) MG 17 machine guns. The production Hs 192B-1 series went into service first with 4./SchG 1 at Lippstadt in April 1942 and also became operational on the Eastern front, where the type was to be used most widely, although it served also in North North Africa, Italy and in France after the D-Day landings. Sub-variants of the M 129B-1 series included the Hs 129B-1/R1 with additional offensive armament in the form of two 110 lbs (50 kg) bombs or 96 anti-personnel bombs; the Hs 129B-1/R2 with a 30-mm MK 101 cannon beneath the fuselage; the Hs 129B-1/R3 with four extra MG 17 machine-guns; the Hs 129B-1/R4 with an ability to carry one 551 lbs (250 kg) bomb instead of the Hs 129B-1/R1's bomb load; and the Hs 129B-1/R5 which incorporated an Rb 50/30 camera installation for reconnaissance duties. By the end of 1942 the growing capability of Soviet tank battalions made it essential to develop a version of the Hs 129 with greater fire-power, leading to the Hs 129B-2 series which was introduced into service in the early part of 1943. They included the Hs 129B-2/Rl which carried two 20 mm MG 151/20 cannon and two 13 mm (0.51 in) machine-guns; the generally similar Hs 129B-2/R2 introduced an additional 30 mm MK 103 cannon beneath the fuselage; the Hs 129B-2/R3 had the two MG 13s deleted but was equipped with a 37 mm BK 3,7 gun; and the Hs 129B-2/R4 carried a 75 mm (2.95 in) PaK 40L ('L' for Luftwaffe) gun in an underfuselage pod. Final production variant was the Hs 129B-3 of which approximately 25 were built and which, developed from the Hs 129B-2/R4, substituted an electro-pneumatically operated 75 mm BK 7,5 gun for the PaK 40 (Panzer Abwehr Kanone 40). The lethal capability of the Hs 129B-2/R2 was amply demonstrated in the summer of 1943 during Operation 'Citadel', the German offensive which was intended to regain for them the initiative on the Eastern Front after the defeat at Stalingrad. During this operation some 37,421 sorties were flown, at the end of which the Luftwaffe claimed the destruction of 1,100 tanks. However accurate these figures, not all of those destroyed could be credited to Hs 129s, but there is little doubt that the 879 of these aircraft that were built (including prototypes) played a significant role on the Eastern front. Inspite of its small numbers and deficiancies, proved extremely successful in the anti-role, however, it suffered heavy losses and not many examples survived the war. The Hs 129B equipped three Staffeln of the 8th Assault Wing of the Royal Romanian Air Corps. On 23 August 1944 there was a coup in Romania, as a result of which the country changed from being an ally of Germany to becoming an enemy. These Hs 129Bs, accordingly were used against the German armies, finally being combined into a unit equipped with the Ju 87D Stuka. In late September 1944, the entire manufacturing programme
was abandoned, along with virtually all other German aircraft production
except the 'emergency fighter programme'. Total production had amounted to
only 879, including prototypes. Because of attrition and other problems,
the Hs 129 was never able to fully equip the giant anti-tank force that
could be seen to be needed as early as winter 1941-42, an overall effect
on the war was not great. Towards the end, in autumn 1944, operations
began to be further restricted by shortage of high octane petrol, and by

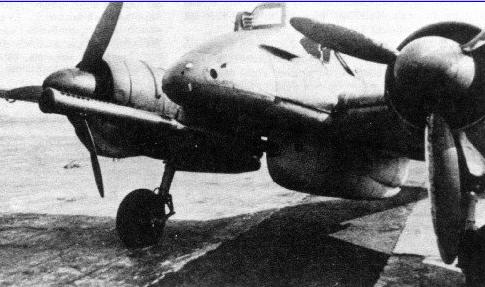

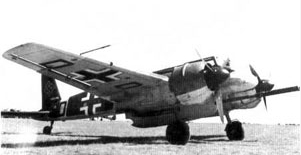

the final collapse of Germany only a handful of these aircraft remained. Because of the triangular-section fuselage and the need to keep the airframe as small as possible the cockpit of the Hs 129 was very cramped. So cramped in fact that the Revi C 12/C gunset was mounted on the aircraft nose outside of the cockpit and certain engine instruments were mounted on the inboard side of the engine nacelles for the pilot to view. The entire nose section formed a welded armoured shell 6 mm to 12 mm thick around the pilot, with toughened 75 mm thick glass in the canopy. The total weight of the nose armour was 2,380 lbs (1080 kg). A large pilot would have a great deal of trouble in handing the aircraft in ground attacks and a short control stick required a great deal of strength to move even in the modest manoeuvres.. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

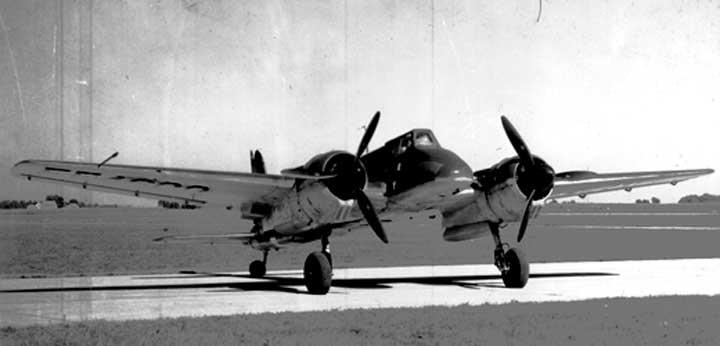

Henschel Hs 129From Wikipedia, the free encyclopedia.

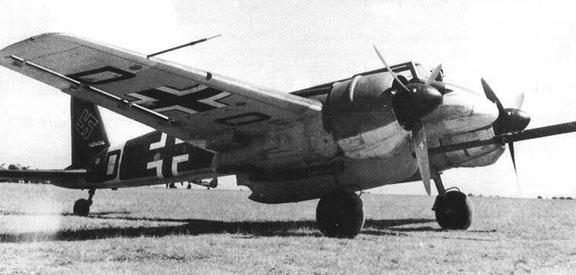

The Henschel Hs 129, often referred to by its nickname, the Panzerknacker, (tank cracker), was a World War II ground attack aircraft fielded by the Luftwaffe. Although likely to be a good anti-tank weapon, the plane was produced in only small numbers and deployed during a time when the Luftwaffe was unable to protect them from attack. BackgroundBy the middle of the 1930's the idea of using aircraft against ground targets had been "well understood" to be of little use other than hurting enemy morale. But the Condor Legion proved the opposite in Spain with attack planes like the Henschel Hs 123 and cannon-armed versions of the Heinkel He 112. Although these planes were poorly suited to the role, their powerful armament and fearless pilots proved that the aircraft was a very effective weapon even without bombs. This led the Luftwaffe to issue a tender for a new plane that was built specifically for the ground-attack role. The plane had to be heavily armored around the cockpit and engines, and include a 75 mm thick armored windscreen that had to be as close as possible to the nose in order to see the ground during low level strafing runs. One last requirement doomed the designs, they needed to be powered by "unimportant" engines of low power. Four companies were asked to respond, and only two of the resulting three entries were considered worthy of consideration; Focke-Wulf's conversion of their earlier Fw 189 reconnaissance plane, and Henschel's all-new Hs 129. Design and PrototypesThe Hs 129 was designed around a single large "bathtub" of steel sheeting that made up the entire nose area of the plane, completely enclosing the pilot up to head level. Even the canopy was steel, with only tiny windows on the side to see out of and two angled blocks of glass for the windscreen. In order to improve the armor's ability to stop bullets the sides were angled in forming a triangular fuselage, resulting in almost no room to move at shoulder level. There was so little room in the cockpit that the instrument panel ended up under the nose below the windscreen where it was almost invisible, some of the engine instruments were moved outside onto the engine nacelles, and the gunsight was mounted outside on the nose. In the end the plane came in 12% overweight and the engines 8% underpowered, so it flew like a pig. The controls proved to be almost inoperable as speed increased, and in testing one plane flew into the ground from a short dive because the stick forces were too high for the pilot to pull out. The Fw design proved to be no better, both planes were underpowered with their Argus 410 engines, and very difficult to fly. In the end the only real deciding factor was that the Henschel was smaller and cheaper. The Focke-Wulf was put on low priority as a backup, and testing continued with the Hs 129A-0. Hs 129B-1A series of improvements resulted in the Hs 129A-1 series, armed with two 20 mm MG 151/20's and two 7.92 mm MG17's, along with the ability to carry four 50kg bombs under the midline. But even before the A-1's were delivered the plane was redesigned with the Gnome-Rhone 14M radial engine, which were captured in some number when France fell. This engine supplied 700 hp (522 kW) for takeoff compared to the Argus at 465 hp (347 kW). The A-1 planes were converted into Hs 129B-0's for testing (although some claim that some A's were sold to Romania) and the pilots were reportedly much happier. Their main complaint was the view from the canopy, so a single larger windscreen and a new canopy with much better vision were added, resulting in the production model Hs 129B-1. B-1's started rolling off the lines in December 1941, but they were delivered at a trickle. In preparation for the new plane, I./Sch.G 1 had been formed up in January with 109's and Hs 123's, and they were delivered B-0's and every B-1 that was completed. Still, it wasn't until April that 12 B-1's were delivered and its 4th staffeln was ready for action. They moved to the eastern front in the middle of May, and in June they received a new weapon, the 30 mm MK 101 cannon with armor-piercing ammo in a midline pod. Hs 129B-2By May of 1942 only 50 of the planes had been delivered when they started to deliver the new Hs 129B-2 model side-by-side with the B-1. The only difference between the two were changes to the fuel system – a host of other minor changes could be found almost at random on either model. As time went on these changes were accumulated into the B-2 production line until you could finally tell them apart at a glance, the main differences being the removal of the mast for the radio antenna, the addition of a direction-finding radio antenna loop, and shorter exhaust stacks on the engines. In the field the differences seemed to be more pronounced. The R-kits were renumbered and some were dropped, and in general the B-2 planes received the upgraded cannon pack using a MK 103 instead of the earlier MK 101. These guns both fired the same ammunition, but the 103 did so about almost twice the rate. Hs 129B-3
Even by late 1942 complaints started about the MK103 against newer versions of the Soviet T-34 tanks. One solution would be to standardize on the larger 37 mm gun, itself adapted from an anti-tank gun that had recently been abandoned by the army. For some reason the Luftwaffe decided to skip over this gun (although it served perfectly well on the Ju 87), and install a gigantic 75 mm gun from the Panzer IV. A huge hydraulic system was used to damp the recoil of the gun, and an auto-loader system with twelve rounds was fitted in the large empty space behind the cockpit. The resulting system was able to knock out any tank in the world, but the weight slowed the already poor performance of the plane to barely flyable in this new Hs 129B-3 version. B-3's only started arriving in June 1944, and only 25 were delivered by the time the lines were shut down in September. A small number were also converted from older B-2 models. In the field they proved deadly weapons, but with only 25 of them they had no effect on the war effort. Hs 129CIn order to address the poor performance of the aircraft, plans had been underway for some time to fit the plane with newer versions of the Italian Isotta-Fraschini Delta engine that delivered 850 hp (634 kW). However the engine ran into a number of delays, and was still not ready for production when the plant was overrun by the Allies. See also: Henschel & Son
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
